Views: 0 Author: Site Editor Publish Time: 2025-05-15 Origin: Site
Mobile laser cleaning is increasingly adopted in industrial field service to remove rust, paint, and other coatings from large structures or equipment on-site. Unlike fixed laser systems in controlled factory environments, mobile units operate in unpredictable conditions that add safety challenges. High-power industrial lasers (often Class 4) are particularly hazardous: they can cause immediate eye or skin damage and even fire if a stray or reflected beam strikes combustible materialosha.gov. These potential hazards of on-site laser cleaning necessitate strict safety measures. Operators and supervisors must plan and mitigate risks through thorough precautions and training.
Formal preparation and checklists help ensure that a mobile laser cleaning task is as safe as a factory operation. This article reviews best practices for power setup, site assessment, shielding, fume control, and public safety when using portable laser cleaners. Each field job is unique, so safety teams should treat every mobile cleaning project with a full hazard survey and a written procedure tailored to the conditions.
Mobile laser units often rely on portable generators or temporary power lines. Proper electrical setup is critical to avoid shocks, fires, or equipment damage.
Inspect and prepare the generator: Before connecting the laser, examine the generator and cables for loose connections, damaged insulation, or fuel leaks. Place the generator on stable, dry ground and shield it from rain or flooding. Always keep fuel containers stored safely at a distance to prevent fires.
Insulated, heavy-duty cords: Use only high-quality, heavy-gauge extension cords rated for the laser’s power and length. Ensure they are grounded (3-prong) and undamaged. Do not splice or overload cords. Plug the laser system and any fans or extractors directly into the generator outlets; avoid using the generator’s built-in circuitry for other power systems without a proper transfer switch.
Ground-fault protection: Install a Ground-Fault Circuit Interrupter (GFCI) on the generator output or at the start of each cable run. This trips power instantly if a short or ground fault occurs, reducing electrocution risk in damp or outdoor conditions.
Lockout/Tagout: Follow lockout/tagout procedures during setup and maintenance. Assume the laser power supply is live. Only qualified personnel should connect or disconnect electrical lines. Use warning tags or barriers so that the generator cannot be energized while work is in progress.
Voltage stabilization is also important. Laser cleaners often require stable 230VAC or 480VAC input to run reliably. Fluctuations (e.g. generator engine surging under load) can cause the laser to shut off or even damage sensitive electronics. Use a generator of sufficient wattage for the laser’s rating and consider adding an Uninterruptible Power Supply (UPS) or industrial voltage stabilizer if feasible. Make sure the generator’s governor is set to maintain constant output frequency (50/60 Hz). If the generator has a “low idle” mode, switch it off or disable it, so the voltage does not collapse under partial load. Finally, keep cables organized to prevent electrical and trip hazards. Secure loose cords with cable ramps or overhead hangers, and bundle any excess safely out of the way. Avoid running cables through standing water or areas where a vehicle or equipment could crush them. Always double-check that the laser chassis and generator frame are properly grounded (bonded) to a ground rod or building electrical system per code. These precautions significantly reduce shock and fire risks when using a field generator with high-voltage laser equipment.
Before powering on the laser, perform a thorough site evaluation. Reflective surfaces: Look for polished or shiny areas near the work that could reflect the laser beam. Specular reflections from mirrors, chrome, glass, or wet surfaces can send a lethal beam far outside the intended area. Cover or shield any such reflectors not being cleaned, or angle the laser to avoid bouncing off them. Even diffuse reflections off rough metal can still carry hazardous infrared light, so treat all reflected paths as dangerous. Establish sight lines and, if needed, limit the target area to portions of the structure that are free from nearby reflectors.
Ventilation: Lasers generate smoke, dust, and fumes when they ablate coatings. Even outdoors, check that fumes will not accumulate where people breathe. In enclosed or semi-enclosed spaces (such as inside vessels, tunnels, or under awnings), air can become stagnant and expose workers to airborne particulates. Feel for breezes and avoid cleaning into a dead-air corner. Use portable fans or blowers to establish cross-ventilation and carry fumes away from the crew. When cleaning near grates, vents, or low-lying areas, anticipate airflow patterns: lasers can drive heated air upward, so configure extraction low to capture rising particles. Always wear appropriate respirators if there is any doubt about fresh air—N95 masks at minimum, and preferably P100/HEPA filters in dusty conditions. OSHA and industry experts note that laser cleaning “releases contaminants into the air – including dust and fumes that must be extracted and filtered”.
Assess fire risks and flammables. Remove any combustibles before starting. Flammable liquids, aerosol cans, gasoline, solvents, or rags can ignite if heated by the laser’s infrared light. Even ordinary items like paper, wood, or cloth can catch fire from sustained exposure. Laser pulses concentrate heat quickly: if the beam is accidentally focused on a stray piece of wood or leaves, it could start smoldering or a flash fire. Clear the area of loose debris, oily rags, vegetation, and fuel sources. Cover fixed flammable surfaces with aluminized blankets or spark curtains if necessary. Keep a fire extinguisher rated for Class A/B nearby, and have all crew know the location of emergency exits.
Lastly, consider weather. High winds can blow dust and fume plumes into unintended areas, and can also chill operators or blow flyers and tape around. Rain or moisture can create a shock hazard if splashing on live electrical parts (generators and cables must be kept dry). If rain is likely, postpone outdoor laser work or construct a protective canopy. Extremely dry conditions (hot desert) may increase fire risk, so take extra precautions or postpone if a spark could start a wildfire. Lightning storms require a complete shutdown: a laser has large metal components that can attract a strike. Check the forecast and delay work if severe weather threatens. By addressing these environmental factors in advance – reflection hazards, airflow, combustibles, and weather – you minimize the chance of incidents during field laser cleaning.
Containment of the laser beam is essential. Unlike fixed installations that have permanent enclosures, mobile crews must rig temporary shields. Use portable laser barriers or welding curtains made of dense, non-reflective, flame-retardant fabric. These come in rolls or panels and can be wrapped around the structure being cleaned. Ensure the shielding extends beyond the beam paths: typically 6–12 inches below and around any gaps. For example, if cleaning a section of machinery, surround it on all sides with curtains or folding screens. An overhead tarping may be needed if beams are directed upward. Welding screens can also block stray light; inspect any used curtains to ensure they are rated for the laser’s wavelength (typically in the infrared).
Guidelines note that all work areas should be surrounded by physical barriers. For example, one industry source advises operators to “set up physical barriers around the working area” to prevent stray-beam exposures. In practice, this means placing barricade stands or A-frame barriers with opaque panels, or using scaffold tarps and welded wire barriers. The goal is to intercept any beam or reflection so that it cannot reach unprotected eyes beyond the zone. Also, post laser warning signs on these barriers. Use ANSI Z136-standard signs such as “DANGER – CLASS 4 LASER RADIATION – EYE PROTECTION REQUIRED” at every access point. Ensure the signage is visible even in daylight. Inside the hazard zone, no unshielded person should ever be present without wearing laser safety goggles.
Organize the area with clear markings: line paint, spray chalk, or safety tape on the ground can outline safe vs hazard zones. Place these markings several feet outside the shields so a person cannot accidentally wander too close. Double-check that gaps or overlaps in curtains do not leave slits for the beam to escape. Always do a test observation with the laser at low power (or use a visible aiming beam) to verify the containment before full-power cleaning. These portable shielding steps, combined with robust warning signs and PPE, create a controlled “laser-controlled area” comparable to a fixed laser lab.
Laser cleaning ablates material into extremely fine dust and fumes. Inhaling these byproducts can be harmful. For instance, removing rust (iron oxide) sends fine rust particulates into the air, and stripping paints can release toxic metals (lead, cadmium) or solvent vapors. Even steel oxide dust can irritate lungs over time. It is therefore critical to capture the plume at its source. In outdoor or well-ventilated settings, stand upwind or on the clean-air side of the plume so particles blow away from the breathing zone. If the laser head moves, keep the extraction nozzle aligned just behind the beam so it collects smoke as it is produced.
Industrial safety guides note that laser cleaning “releases contaminants into the air” – dust and fumes – “that must be extracted and filtered”. Use a local exhaust ventilation (LEV) or portable fume extractor where possible. Position a large-capacity portable extractor (often with a flexible hood) within a few inches of the ablation point. If unavailable, use a strong shop vacuum with a HEPA filter on its intake hose right next to the beam. In partial shelters or portable buildings, arrange box fans or hazmat blowers to push air through an opening away from people.
Filtration: Always employ true HEPA filtration in the extraction system. HEPA filters capture at least 99.97% of airborne particles 0.3 microns or larger, which includes virtually all laser-generated dust. Some advanced extractors use multi-stage filters: pre-filters for large debris, HEPA for fine dust, and activated carbon filters for vapors or odors. A typical setup might use:
Pre-filters: Capture large chips and debris, extending life of finer filters.
HEPA filter: Traps microscopic dust (≥0.3 µm) with ≥99.97% efficiency. This is essential for removing metal oxides and lead fumes.
Carbon (or chemical) filter: Adsorbs organic vapors and smokes (useful when cleaning paint, oil, or solvents).
Maintain the filters diligently: monitor pressure drop, change filters when saturated, and dispose of contaminated filters as hazardous waste if they contain toxic metals. Always power down and lock out the extractor before servicing filters.
When no mechanical extraction is available, focus on natural ventilation. Keep doors and windows open, and exhaust all air out of the structure if cleaning indoors. After cleaning, allow the workspace to air out and use fans to clear residual dust. Crew members should wear appropriate respirators at least until air quality is verified safe. Finally, practice good housekeeping after each shift: use HEPA-vacuum to clean up settled dust; do not dry-sweep. This prevents airborne recirculation of any remaining particulates.
In any public or semi-public area, bystander protection is paramount. Treat the job site as an active hazard zone whenever the laser is on. Start by cordoning off the entire area: use bright flagging tape (yellow or red), traffic cones, or temporary fencing to block entry. Erect signs at all approaches warning of the laser work (e.g. “Caution – Laser Cleaning in Progress – Keep Clear”). Give advance notice to nearby personnel or residents that laser cleaning will occur, so they can avoid the vicinity or take precautions (closed windows, staying indoors, etc.).
Perimeter control: Use high-visibility tape, cones, or barriers to clearly mark the exclusion perimeter. This should extend beyond the actual shielding by several feet, so no person can accidentally walk into the hazard zone.
Safety steward: Assign at least one employee as a lookout at each access point. This person’s sole job is to prevent anyone (pedestrian or vehicle) from approaching when the laser is active. The steward should wear a reflective vest and have communication (radio or phone) with the operator. If anyone attempts to enter, the steward must immediately alert the operator and cease laser operation.
Warnings: Place additional “Laser in Use” and “Authorized Personnel Only” signs at street level or entryways. For construction sites, post these on the site fence. Verbally remind anyone in the area (e.g. a site foreman or security guard) when the laser will fire up. Loudspeakers or bullhorns can announce a brief countdown before laser activation. If it’s practical, issue personnel with laser safety glasses during the operation (for example, construction workers farther away who cannot leave the area).
Always avoid conducting laser cleaning where uninvolved people might look directly at the beam or its reflections. Even if someone is outside the marked perimeter but watching through a window or from behind a fence, stray scatter light can cause momentary flash blindness. If public traffic (vehicles, pedestrians) comes very close, consider additional measures: reflective beam blocks, blackout screens, or scheduling the work at night or low-traffic hours. At a minimum, keep vehicles headed downwind of the plume, and have drivers roll up windows during the work. Remember: no one should enter the exclusion zone under any circumstance without proper protection and authorization.
Laser cleaning in the field provides exceptional flexibility and efficiency but requires recreating a controlled environment on-site to ensure safety. Unlike stationary laser systems with fixed safeguards, mobile teams must manage portable power sources, assess site-specific hazards, and implement temporary shielding and ventilation solutions. Additionally, they must address public safety by establishing clear perimeters and monitoring access to the work area.
By rigorously following best practices—such as conducting thorough site assessments, using safety checklists, inspecting equipment, and training all personnel—mobile laser cleaning operations can achieve safety standards comparable to fixed installations. Proper documentation and continuous procedure updates are essential to maintaining these high safety levels.

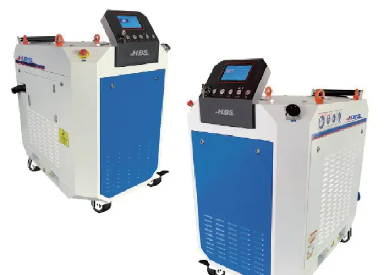

For those looking to adopt or enhance mobile laser cleaning solutions, HBS Tech Co., Ltd. offers cutting-edge equipment designed for safe, efficient field use. Their expert team provides comprehensive support from system integration to training, helping you implement laser cleaning with confidence.
To learn more about HBS Tech’s mobile laser cleaning systems and services, visit www.hbs-lasers.com . Partner with HBS Tech to bring the power of safe, effective laser cleaning to your field operations.
