If you have walked a production floor recently, you have likely noticed a massive shift in metal fabrication. The demand for miniaturized, high-precision metal components is skyrocketing. Recent industry data highlights a sharp upward trend in micro-tube processing, largely driven by two sectors: the electric vehicle (EV) market, which requires highly complex, thin-walled thermal management fluid lines, and the medical device industry, which demands flawless finishes for minimally invasive surgical tools. This rapid shift toward micro-manufacturing dictates a harsh reality for shop floors—processing equipment must evolve from brute-force mechanical cutting to surgical, non-contact precision.
Traditional cutting methods like band saws, abrasive blades, or standard plasma cutters simply cannot handle delicate tubing. They frequently cause material deformation, introduce severe thermal distortion, and leave rough internal burrs that require expensive secondary processing. To overcome these mechanical limitations, the specialized tube laser cutting machine has emerged as the definitive solution on the modern shop floor. By replacing physical blades with focused light, manufacturers achieve high-speed, burr-free cuts. This guide walks procurement teams and manufacturing engineers through the exact hardware specifications, automation features, and production line integrations necessary to scale small-diameter pipe production efficiently.
Small-diameter tubes demand specialized electric servo chucks and high machine acceleration (1.0G+) to prevent structural crushing and maximize hourly output.
Matching fiber laser power to specific wall thickness is critical; overpowering wastes capital, while underpowering creates severe production bottlenecks.
Automated bundle feeding and intelligent outfeed sorting are fundamental for scaling operations without driving up labor costs.
Integrating an inline laser marking machine directly into the production flow ensures regulatory compliance without sacrificing cycle times.
Evaluating the Total Cost of Ownership (TCO) and the manufacturer's local support infrastructure is just as important as reviewing raw machine specs.
In the context of industrial laser processing, "small-diameter" typically refers to metal tubes and pipes with an outer diameter (OD) ranging from 10mm to 50mm, often featuring extremely thin wall thicknesses between 0.5mm and 3mm. Processing these specific dimensions introduces a unique set of engineering hurdles that standard structural pipe cutters cannot handle.
Material Deformation and Clamping Issues
Thin-walled tubes completely lack the structural rigidity of heavy carbon steel. Imagine feeding a 15mm copper tube into a traditional cutting zone. If a standard hydraulic chuck applies even a fraction too much pressure, the tube instantly turns oval. This ruins the entire batch and jams the feeder. Furthermore, excess heat input from rudimentary cutting tools alters the metallurgy of the thin tube, causing localized warping and discoloration.
Precision and Micro-Tolerances
Industries utilizing small tubing operate under strict quality control frameworks. A medical stent or an aerospace fuel injection line requires absolute dimensional accuracy. The cutting equipment must execute complex geometries—such as intersecting holes, bevels, and micro-slots—with zero internal burrs. Eliminating secondary polishing is essential for maintaining a profitable cycle time.
Speed and High-Volume Output
Small-diameter pipe orders are rarely low-volume. Because individual parts are lightweight and consumed rapidly in assembly, production runs often scale into tens of thousands of units. Therefore, the processing equipment must maintain high dynamic speeds. Non-contact laser cutting resolves these pain points by eliminating physical force on the tube, focusing a microscopic heat-affected zone (HAZ), and operating at speeds unattainable by mechanical blades.
Selecting the right equipment requires looking far beyond top-line marketing metrics. You must match the machine's core hardware to the specific physics of delicate tubing. To make this easier, we have outlined the critical differences in hardware selection.
Component | Standard Tube Laser (Large Diameter) | Small-Diameter Optimized Laser |
|---|---|---|
Chuck Type | Hydraulic (High clamping force, prone to crushing) | Electric Servo / Full-Stroke Pneumatic (Precise, programmable grip) |
Laser Power | 6kW - 12kW+ (Built for thick plates/heavy steel) | 1kW - 3kW (Optimal for thin walls <3mm, low thermal distortion) |
Acceleration | 0.5G - 0.8G (Slower cornering) | 1.2G - 1.5G+ (Rapid directional changes for micro-cuts) |
Tailing Length | 150mm - 200mm+ (High scrap rate) | < 50mm (Multi-chuck designs maximize material yield) |
Specialized Chuck Design
The chuck is the mechanical heart of the machine, responsible for holding and advancing the raw material. For small diameters, standard hydraulic chucks are entirely insufficient due to their aggressive, binary clamping force. Engineers must evaluate full-stroke pneumatic or electric servo-driven chucks instead. These systems provide precise, programmable clamping pressure, gently but firmly gripping delicate tubes. Specifically, advanced multi-chuck designs minimize the "tailing" length—the un-cuttable waste at the end of a pipe—which significantly reduces material scrap over high-volume runs.
Laser Source and Wattage
Fiber laser technology is the undisputed standard for cutting metal pipes, offering superior beam quality and energy absorption in reflective metals. However, selecting the correct wattage is a common trap. For small-diameter, thin-walled tubes under 3mm in thickness, a laser source between 1kW and 3kW is generally the optimal sweet spot. Investing in a 10kW laser source for 1.5mm stainless steel tubing yields diminishing returns; the cutting speed is ultimately limited by the machine's mechanical movement, not the laser power. Choosing the appropriate wattage keeps upfront capital costs down and minimizes ongoing electrical consumption.
Cutting Speed vs. Machine Acceleration
When processing large structural pipes, raw top speed is the primary metric. In contrast, small pipes require multiple intricate holes, slots, and short cut-offs. Consequently, the machine's acceleration—measured in G-force—is far more critical. The cutting head will frequently start, stop, and change directions in fractions of a second. A machine boasting high acceleration will complete complex cutting patterns significantly faster than a machine with a higher top speed but sluggish cornering capabilities.
To achieve a viable Return on Investment (ROI), industrial cutting equipment must operate continuously. Relying on manual loading and unloading for small pipes is not only ergonomically hazardous for operators but also creates massive production bottlenecks.
Automatic Bundle Loading Systems
An automatic bundle loader is an essential feature for scaling operations. Operators can load an entire bundle of raw tubes into a staging magazine at the start of a shift. The system then automatically separates, measures, and feeds individual tubes into the laser chuck without human intervention. This ensures the machine maintains maximum arc-on time, allowing a single operator to manage multiple manufacturing cells simultaneously.
Intelligent Sorting and Unloading
Once a small part is severed from the main tube, it must be safely removed. Standard gravity drops can cause freshly cut, delicate parts to dent or scratch upon impact. Forward-thinking engineers look for intelligent unloading systems featuring servo-controlled drop-down mechanisms and automated sorting conveyors. These systems protect the surface finish of the cut parts and can automatically separate finished pieces from scrap metal, prepping them for the next phase of assembly.
In modern manufacturing environments, cutting the pipe to length is only the first step. Strict regulatory compliance dictates that parts must be easily tracked throughout their lifecycle, from the factory floor to end-user deployment.
The Need for Traceability
Industries such as automotive and aerospace operate under rigid quality standards. Every component requires verifiable industrial traceability marking before it leaves the facility. This typically involves engraving permanent 2D matrix codes, batch numbers, or serial data directly onto the curved metal surface of the tube.
Inline vs. Offline Marking
Traditionally, cut tubes are gathered in bins and transported to a separate workstation for manual engraving. This offline process introduces human error, requires additional labor, and severely disrupts the manufacturing flow. The optimal solution is to integrate a production line laser marker directly after the cutting process, processing parts continuously as they exit the tube laser's outfeed conveyor.
Hardware Solutions and Results

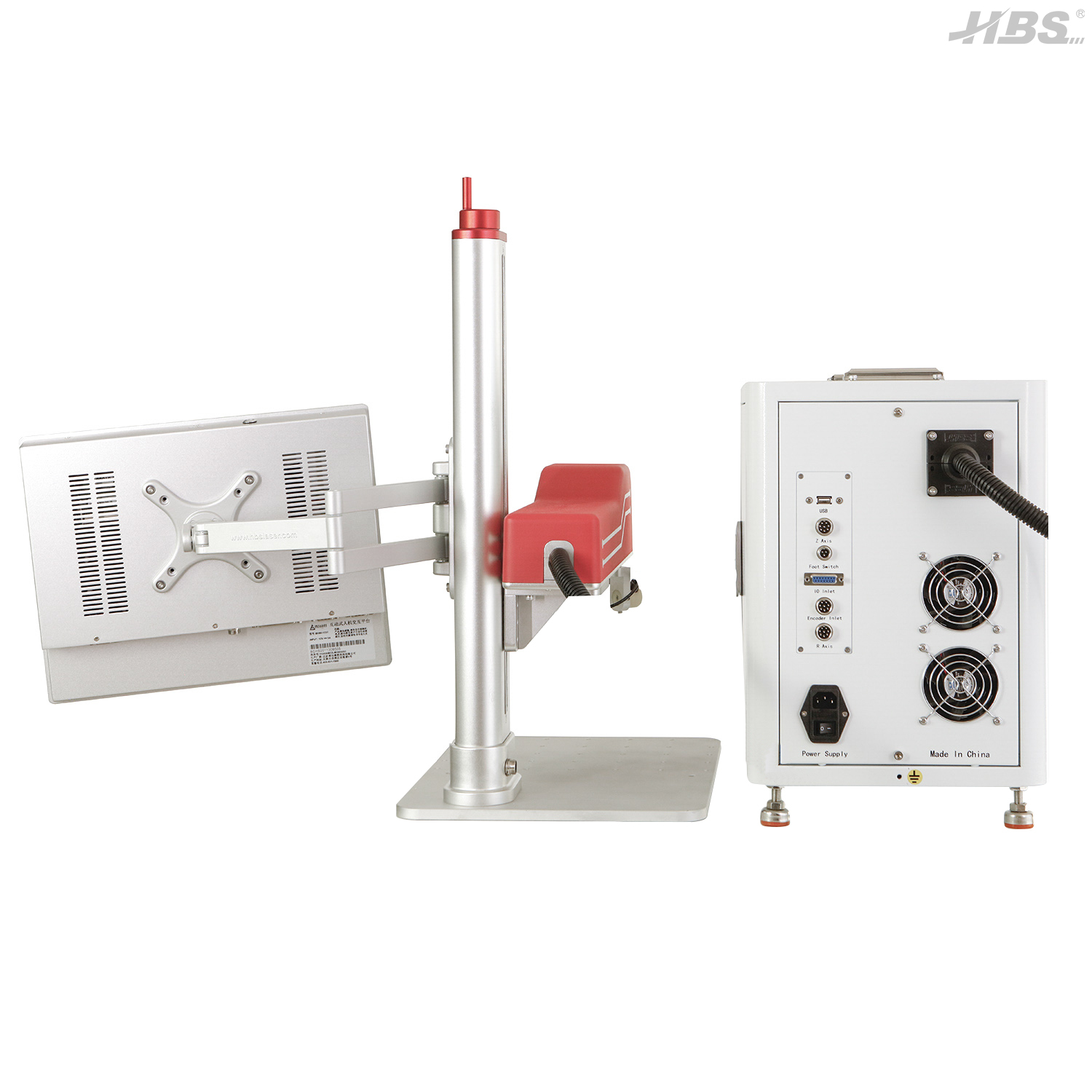

To execute this synergy effectively, specific hardware configurations are required. Utilizing a robust marking unit—such as a 20W or 30W fiber laser equipped with dedicated I/O ports—allows the main tube cutting machine's Programmable Logic Controller (PLC) to send precise trigger signals to the marker. For high-volume lines, integrating an automatic laser marking machine with flying marking capabilities can even engrave the required data without halting the conveyor belt. This creates a closed-loop manufacturing cell that eliminates manual labeling and ensures absolute data accuracy.
The physical hardware of a tube laser is only as effective as the software dictating its movements. Advanced CNC control systems are required to translate CAD drawings into efficient physical output.
Advanced Nesting Algorithms
Material utilization directly impacts a shop's profitability. Advanced tube nesting software calculates the most efficient way to arrange multiple different parts on a single length of raw pipe. By optimizing cut paths and utilizing algorithms that share common cut lines between adjacent parts, the software minimizes scrap metal and maximizes the yield from every raw tube.
3D Tube Cutting Capabilities
Small-diameter tubes often require complex 3D geometries to facilitate downstream assembly, such as precision welding or mechanical joining. High-end machine software seamlessly handles imported 3D models (like STEP or IGES files) and automatically generates toolpaths for saddle joints and intersecting holes. It actively compensates for the physical thickness of the tube wall to ensure a perfect fit.
ERP/MES Integration
For enterprise-level facilities, the tube laser cutter cannot operate in an information silo. Modern control systems offer robust network connectivity, allowing them to plug directly into factory Enterprise Resource Planning (ERP) or Manufacturing Execution Systems (MES). Production managers can track machine uptime, monitor real-time material usage, and analyze job completion rates from a centralized digital dashboard.
Purchasing specialized laser equipment represents a significant capital expenditure. However, the true financial picture emerges when evaluating the operational savings over the machine's lifecycle.
Upfront Costs vs. Operational Savings
While the initial investment is substantial, a tube laser effectively replaces multiple traditional machines, including band saws, drills, milling stations, and deburring wheels. By consolidating these disparate steps into a single automated process, manufacturers drastically reduce direct labor costs and reclaim valuable floor space.
Consumables and Maintenance
Fiber laser technology is inherently solid-state. With no moving parts within the laser generation module and no reliance on expensive laser gases, maintenance costs are remarkably low. The primary operational expenses are localized to the cutting head—specifically inexpensive protective lenses and copper nozzles that take an operator only minutes to replace.
The machine specifications are only half of the equation. The reliability and engineering expertise of the equipment manufacturer are equally vital to long-term success.
Industry Experience and Customization
Buyers should actively seek out manufacturers who possess proven case studies specifically in small-diameter tube processing. A supplier whose primary expertise lies in cutting massive structural steel beams may not fully grasp the micro-tolerance dynamics required for 12mm medical-grade stainless steel tubing. Furthermore, the ideal manufacturing partner should offer engineering flexibility. This includes the ability to provide custom software integrations, specialized chuck modifications, and the expertise to seamlessly link the tube cutter with secondary automation systems.
After-Sales Service and Training
Industrial cutting equipment requires professional installation and rigorous operator training. Evaluate the manufacturer's after-sales infrastructure carefully. Ensure they provide comprehensive on-site training, responsive remote diagnostic support, and maintain a robust local inventory of spare parts to prevent extended production downtime.
Selecting the optimal tube laser cutting machine for small-diameter production requires a strategic evaluation of chuck precision, appropriate laser wattage, and dynamic acceleration. Moving beyond the cutter itself, treating the machine as part of an integrated production line—complete with automated loading, intelligent sorting, and inline traceability marking—will yield the highest possible ROI.
Ready to eliminate bottlenecks and scale your micro-manufacturing capabilities? Whether you need a standalone high-precision cutting cell or a fully integrated production line featuring I/O-ready marking systems for seamless traceability, choosing the right hardware is paramount. Visit https://www.hbs-lasers.com to explore a complete range of industrial processing and automated marking solutions tailored to your exact floor requirements.
Typically, standard industrial tube laser machines are designed to handle diameters down to 15mm or 20mm. However, specialized machines engineered specifically for small-tube applications can successfully process diameters as small as 10mm or even 8mm, provided they are equipped with high-precision electric servo chucks to prevent material crushing.
Yes. Modern fiber laser sources operate at a wavelength (around 1064nm) that is highly absorbed by metals. Unlike older CO2 technology, fiber lasers can easily and safely cut highly reflective materials such as copper, brass, and aluminum, which are frequently used in small-diameter applications like HVAC coils and electrical components.
By utilizing a marking system equipped with I/O communication protocols, engineers can set up an automated engraving station directly over the offload conveyor. The laser cutter's PLC triggers the marker as the part passes by, allowing for fully automated data application without adding any manual labor or slowing down the primary cutting cycle.
Usually, no. If the maximum wall thickness of your small-diameter tubes is under 3mm, a 1.5kW to 3kW fiber laser is highly efficient. Opting for a higher wattage will not significantly increase your cutting speed for thin materials, but it will substantially inflate both your initial purchase price and ongoing electrical consumption.
Preventing internal slag (spatter) in small tubes requires precise control of assist gas pressure (usually Nitrogen or Oxygen) and optimizing the laser's focus position. Additionally, some advanced machines utilize a spatter guard or inject a fine mist/fluid into the tube during the cutting process to prevent molten metal from adhering to the opposite inner wall.
While it varies based on production volume, most high-volume contract manufacturers see a full Return on Investment within 12 to 18 months. This rapid ROI is achieved by consolidating multiple mechanical steps (cutting, drilling, deburring) into one process, drastically reducing labor costs, and virtually eliminating material scrap through advanced nesting and multi-chuck designs.
