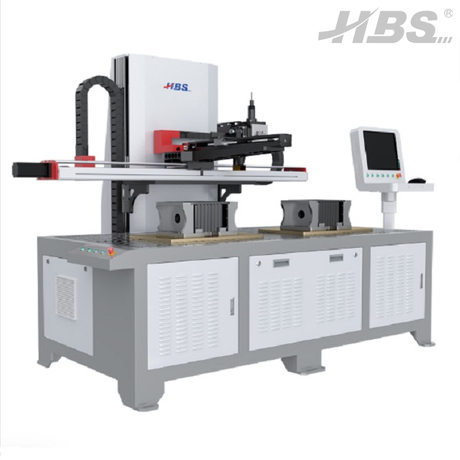

Four separated laser marking machine, capable of marking four workstations simultaneously, facilitating the connection of robots or external manual placement of workpieces, accelerating work efficiency.
HBS-GQ-20G
HBS
| Quantity: | |
|---|---|
Our Four Station Fiber Laser Marking Machine (Model: HBS-GQ-20G) is a high-efficiency batch processing equipment independently developed for industrial manufacturing enterprises with large-scale marking needs. The unique four-station split design allows simultaneous marking on four independent workstations, perfectly adapting to robot automatic loading and unloading or manual workpiece placement, greatly accelerating production efficiency and reducing labor costs. Equipped with industry-leading fiber laser sources, this fiber laser marking machine delivers stable performance, ultra-fine marking effect, and long service life, making it the ideal choice for batch production lines in various manufacturing sectors.
The core advantage of this four station laser marking machine for batch production is its independent four-station design, which can complete marking on four workpieces at the same time, quadrupling production efficiency compared with traditional single-station equipment. It can be seamlessly connected with automated production lines, realizing unmanned continuous production and greatly reducing labor input.
It adopts non-contact processing technology, which will not damage the workpiece surface, no tool wear, and ensures excellent marking quality. The ultra-fine laser beam can achieve a minimum line width of 0.01mm and a minimum character size of 0.5mm, with a marking depth of up to 1.2mm (adjustable). It can process various metal and non-metallic materials, especially has outstanding advantages for high hardness, high melting point, and brittle materials that are difficult to process by traditional methods.
The equipment uses industry-renowned Raycus or IPG fiber laser sources, with a theoretical service life of up to 100,000 hours, no consumable parts, and almost no maintenance required during long-term use. It is controlled by a computer system, compatible with multiple marking formats, easy to realize automated control, and can adapt to complex production line environments with stable performance.
Parameter | Value |
Laser Power | 20W,30W, 50W,100W |
Laser Brand | RAYCUS, IPG |
Laser lifetime | 100,000(Theoretically) |
Laser Wavelength | 1064nm |
Laser medium | Yb: fiber |
Beam Quality | <1.5 |
Power Consumption | ≤500W |
Power Supply | 220V/50Hz/10A |
Cooling method | Air cooled |
Control System | Win7, Win8, Win10, Win XP |
Standard Marking Area | 110mm x 110mm |
Marking Depth | ≤1.2mm (adjustable) |
Marking Speed | ≤12000mm/s |
Min. Line Width | 0.01mm |
Min. Character Size | 0.5mm |
Repetition Frequency | ≤100KHz |
Repetition Precision | ±0.001mm |
Operation Temperature | -10℃-60℃ |
Humidity | 5-95% |
Marking Formats | ai., plt., dxf., tiff., jpg., etc. |
Model | HBS65 | HBS170 | HBS220 | HBS300 |
Marking Area | 65*65(mm) | 170*170(mm) | 220*220(mm) | 300*300(mm) |
Focal Length | 100mm | 250mm | 330mm | 420mm |
Item | Description |
Focus finder system | Extremely fast and high precision |
Motorized Z axis system | No consumable parts, no maintenance required |
Delicated internal designs and lines | Robust under harsh environment |
This fiber laser marking machine is widely used in hardware product manufacturing, 3C electronics, auto parts production, medical device marking, instrument and meter processing, advertising sign making, bathroom hardware, and other industries. It is suitable for batch marking of product logos, two-dimensional codes, serial numbers, anti-counterfeiting marks, and pattern texts, and is an essential equipment for large-scale manufacturing enterprises.
We provide comprehensive global services for all equipment, including on-site installation and commissioning by professional engineers, and professional training for your operators and maintenance personnel, covering equipment operation, software programming, daily maintenance, and production line integration. We also offer 24-hour online technical support, remote debugging services, global fast spare parts supply, and annual maintenance plans to ensure your equipment maintains high-efficiency operation for a long time.
It can process almost all metal materials and most non-metallic materials, including stainless steel, aluminum alloy, copper, plastic, rubber, ceramic, glass, etc.
Yes, the four-station design is specially developed for automated batch production, and can be seamlessly connected with robots and automated production lines to realize unmanned operation.
We provide optional lenses with marking areas of 65×65mm, 170×170mm, 220×220mm, and 300×300mm to meet different processing needs.
If you need a high-efficiency four station fiber laser marking machine to upgrade your batch production line, contact us now. We can provide customized equipment configuration according to your marking materials, production capacity, and production line needs, as well as free sample marking testing and a detailed exclusive quote.
